Security Architecture

Design Principles

• Private key isolation — The server NEVER handles, stores, or has access to private keys. All signing is external.
• Defense in depth — Multiple independent layers: authentication, authorization, input validation, transport encryption, audit logging.
• Least privilege — Role-based access restricts operations to authorized scopes.
• Fail-secure — Invalid/expired requests and missing auth result in explicit rejection.

Security Layers

Layer 1: Transport Security (TLS/HTTPS)
Layer 2: SAP AppRouter (Reverse Proxy + CSRF)
Layer 3: XSUAA Authentication (JWT Validation)
Layer 4: CDS Authorization (@requires + Scopes)
Layer 5: Input Validation (validators.ts + const.ts limits)
Layer 6: Transaction Integrity (Signature Verification + Body Hash Matching)
Layer 7: Audit Trail (SigningRequests + SignatureVerifications + TransactionSubmissions)

Service Separation

This enables independent security policies per service.

Authentication (XSUAA)

ODATANO uses SAP BTP’s XSUAA for production authentication. In development, auth is disabled for local testing.

Profile Configuration

{
  "cds": {
    "requires": {
      "[production]": {
        "db": { "kind": "hana" },
        "auth": "xsuaa"
      }
    }
  }
}

• Development (cds watch): No authentication, all endpoints open.
• Production ([production] profile): XSUAA enforced, every request needs a valid JWT.

xs-security.json

{
  "xsappname": "odatano",
  "tenant-mode": "dedicated",
  "scopes": [
    { "name": "$XSAPPNAME.BlockchainRead", "description": "Read blockchain data" },
    { "name": "$XSAPPNAME.TransactionBuild", "description": "Build unsigned transactions" },
    { "name": "$XSAPPNAME.TransactionSubmit", "description": "Submit signed transactions" },
    { "name": "$XSAPPNAME.SigningManage", "description": "Create/manage signing requests" },
    { "name": "$XSAPPNAME.Admin", "description": "Full administrative access" }
  ],
  "role-templates": [
    {
      "name": "BlockchainViewer",
      "description": "Read-only access",
      "scope-references": ["$XSAPPNAME.BlockchainRead"]
    },
    {
      "name": "TransactionOperator",
      "description": "Build and submit transactions",
      "scope-references": [
        "$XSAPPNAME.BlockchainRead", "$XSAPPNAME.TransactionBuild",
        "$XSAPPNAME.TransactionSubmit", "$XSAPPNAME.SigningManage"
      ]
    },
    {
      "name": "Administrator",
      "description": "Full access",
      "scope-references": [
        "$XSAPPNAME.BlockchainRead", "$XSAPPNAME.TransactionBuild",
        "$XSAPPNAME.TransactionSubmit", "$XSAPPNAME.SigningManage", "$XSAPPNAME.Admin"
      ]
    }
  ]
}

Setup on BTP

cf create-service xsuaa application odatano-uaa -c xs-security.json
cf bind-service odatano odatano-uaa

Authorization & Roles

SAP CAP provides declarative authorization via @requires annotations in CDS.

CDS Annotations

// Read-only service — single scope
service CardanoODataService @(requires: 'BlockchainRead') { ... }

// Transaction service — fine-grained per action
service CardanoTransactionService {
    action BuildSimpleAdaTransaction(...)      @(requires: 'TransactionBuild');
    action SubmitTransaction(...)              @(requires: 'TransactionSubmit');
    action CreateSigningRequest(...)           @(requires: 'SigningManage');
    action VerifySignature(...)                @(requires: 'SigningManage');
}

BTP Role Collections

Create role collections in the SAP BTP Cockpit and assign them to users.

API & Transport Security

TLS/HTTPS

All production traffic must use TLS. SAP BTP provides automatic TLS termination. For Docker, configure a reverse proxy (NGINX, HAProxy) for TLS.

AppRouter as Reverse Proxy

Internet --> AppRouter (auth + CSRF) --> CAP Server (internal only)

The AppRouter provides TLS termination, JWT validation, CSRF protection, and session management. The CAP server should NOT be directly internet-accessible.

CSRF Protection

Enabled in xs-app.json routes via "csrfProtection": true. Clients must:

1. Fetch token via GET with X-CSRF-Token: Fetch header
2. Include token in X-CSRF-Token header on state-changing requests (POST/PUT/DELETE)

CORS

Restrict allowed origins in production (no wildcards):

{
  "cors": {
    "allowedOrigins": [{ "host": "your-domain.com" }],
    "allowedMethods": ["GET", "POST", "OPTIONS"],
    "allowedHeaders": ["Authorization", "Content-Type", "X-CSRF-Token"]
  }
}

Recommended Security Headers

Secret Management

Sensitive Variables

Best Practices

• Never commit secrets to version control
• .gitignore must include: .env, *.skey, *.vkey, *.pem, credentials*.json
• Local dev: Use .env files
• BTP Production: Use SAP Credential Store or User-Provided Services:

cf create-user-provided-service odatano-secrets -p '{
  "BLOCKFROST_API_KEY": "your-production-key",
  "KOIOS_API_KEY": "your-koios-key"
}'
cf bind-service odatano odatano-secrets

API Key Rotation

Rotate keys every 90 days. With multi-backend failover, rotate without downtime:

1. Rotate Blockfrost key → Koios handles requests during restart
2. Rotate Koios key → Blockfrost handles requests during restart

Transaction Signing Security

This is the most critical security boundary. Private keys NEVER touch the server.

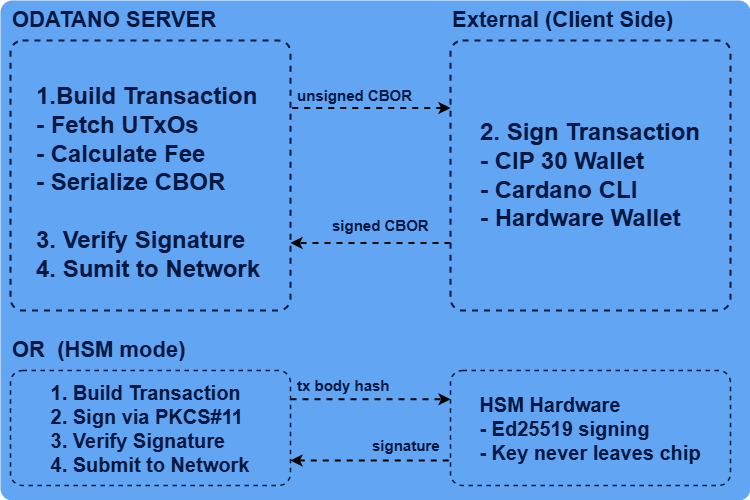

External Signing Architecture

The server only sees: unsigned CBOR, signed CBOR (public witnesses, NOT keys), and transaction body hashes.

Signing Methods

For signing code examples, see Transaction Workflow.

HSM (PKCS#11) Integration

ODATANO supports server-side signing via PKCS#11-compatible HSMs.

Configuration:

HSM_ENABLED=true
HSM_PKCS11_MODULE=/usr/lib/pkcs11/yubihsm_pkcs11.so
HSM_SLOT=0
HSM_PIN=0001password          # Use credential store in production!
HSM_KEY_LABEL=cardano-signing-key
HSM_KEY_ID=0x0001

Security properties: Key generated inside HSM with CKA_EXTRACTABLE=false, signing via CKM_EDDSA (Ed25519), PIN-based session auth. HSM failure is non-fatal — app starts without HSM, other signing methods still work.

Verify HSM status:

curl -X POST http://localhost:4004/odata/v4/cardano-sign/GetHsmStatus \
  -H "Content-Type: application/json" -d '{}'

Verification Checks

1. CBOR parsing — Valid, parseable CBOR
2. Body hash matching — Detects tampering between build and sign
3. Witness presence — At least one VKey witness present
4. Required signers — Specific key hashes present if required
5. Ed25519 verification — Cryptographic signature check per witness

Signing Request TTL

Signing requests expire after 30 minutes (default). Expired requests are rejected even with valid signatures, preventing replay attacks with stale UTxO data.

Input Validation

All inputs are validated before processing via srv/utils/validators.ts with limits from srv/utils/const.ts.

Validators

JSON Complexity Limits (DoS Prevention)

Network-Aware Address Validation

Addresses are validated against the configured NETWORK. A preview address (addr_test1...) is rejected on mainnet, and vice versa.

Audit Trail

ODATANO records every step of the transaction lifecycle via OData-queryable entities.

Tracked Entities

Querying

# Signing requests for an address
POST /odata/v4/cardano-transaction/GetSigningRequestsByAddress
{"address": "addr_test1qq..."}

# Filtered queries with OData
GET /odata/v4/cardano-transaction/SigningRequests
    ?$filter=status eq 'verified'&$orderby=createdAt desc&$expand=verifications,build

# Failed submissions
GET /odata/v4/cardano-transaction/TransactionSubmissions
    ?$filter=status eq 'failed'
